PRODUCT SPECIFICATION
|
Features
|

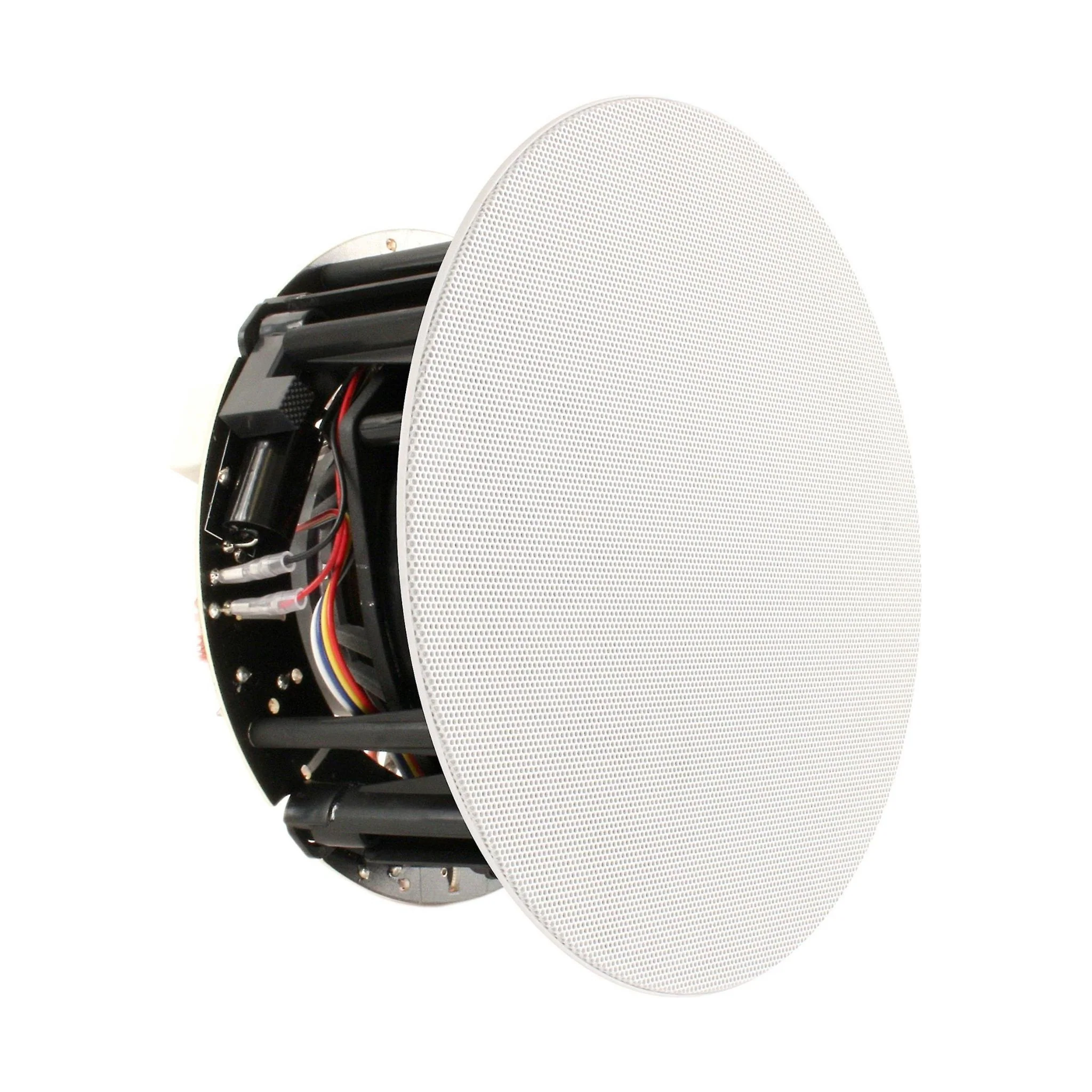

Includes both round and square zero-bezel magnetic grilles
Round grille finished dimension (dia.) 9.1″ (23.1 cm)
|
|
High Frequency Driver Component
|

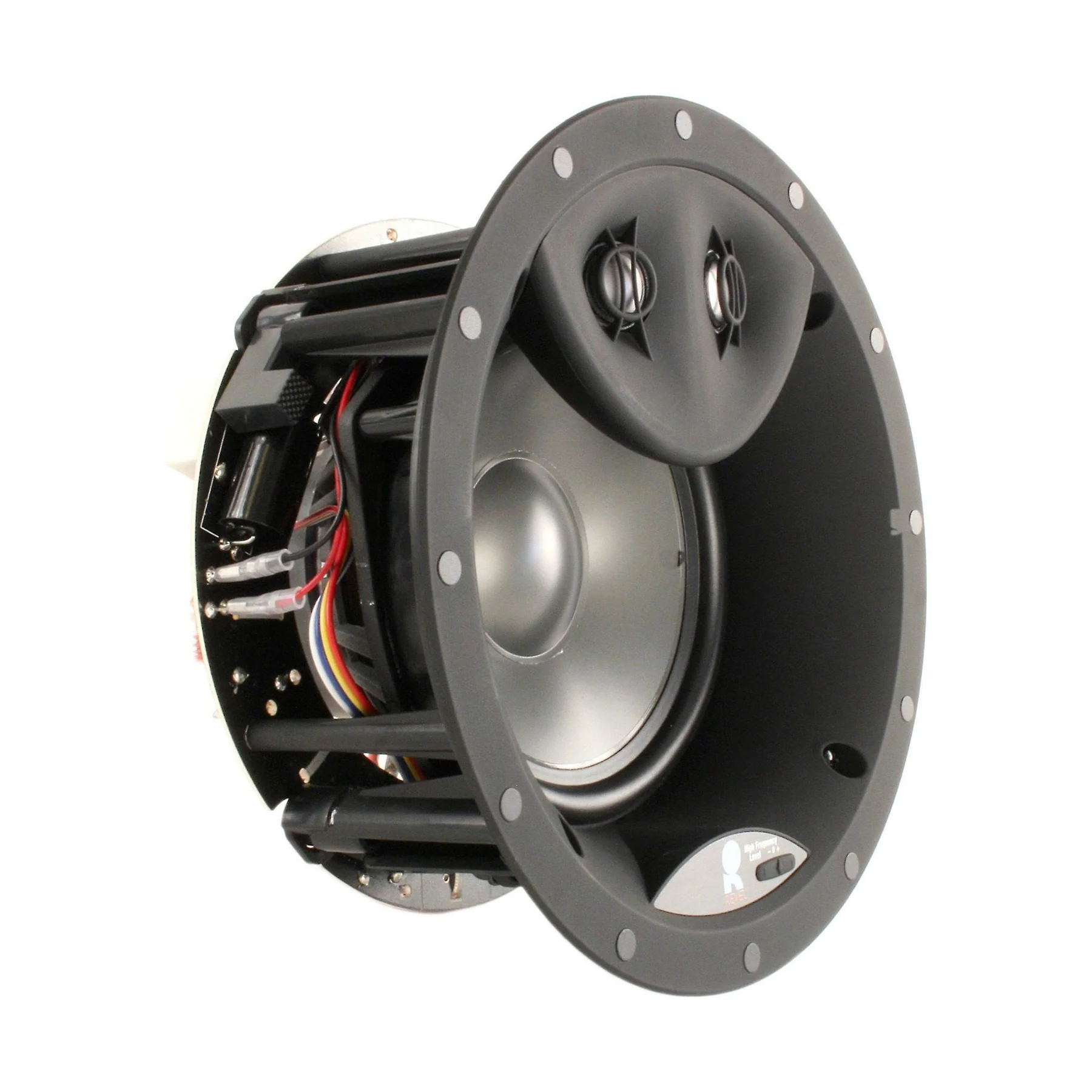

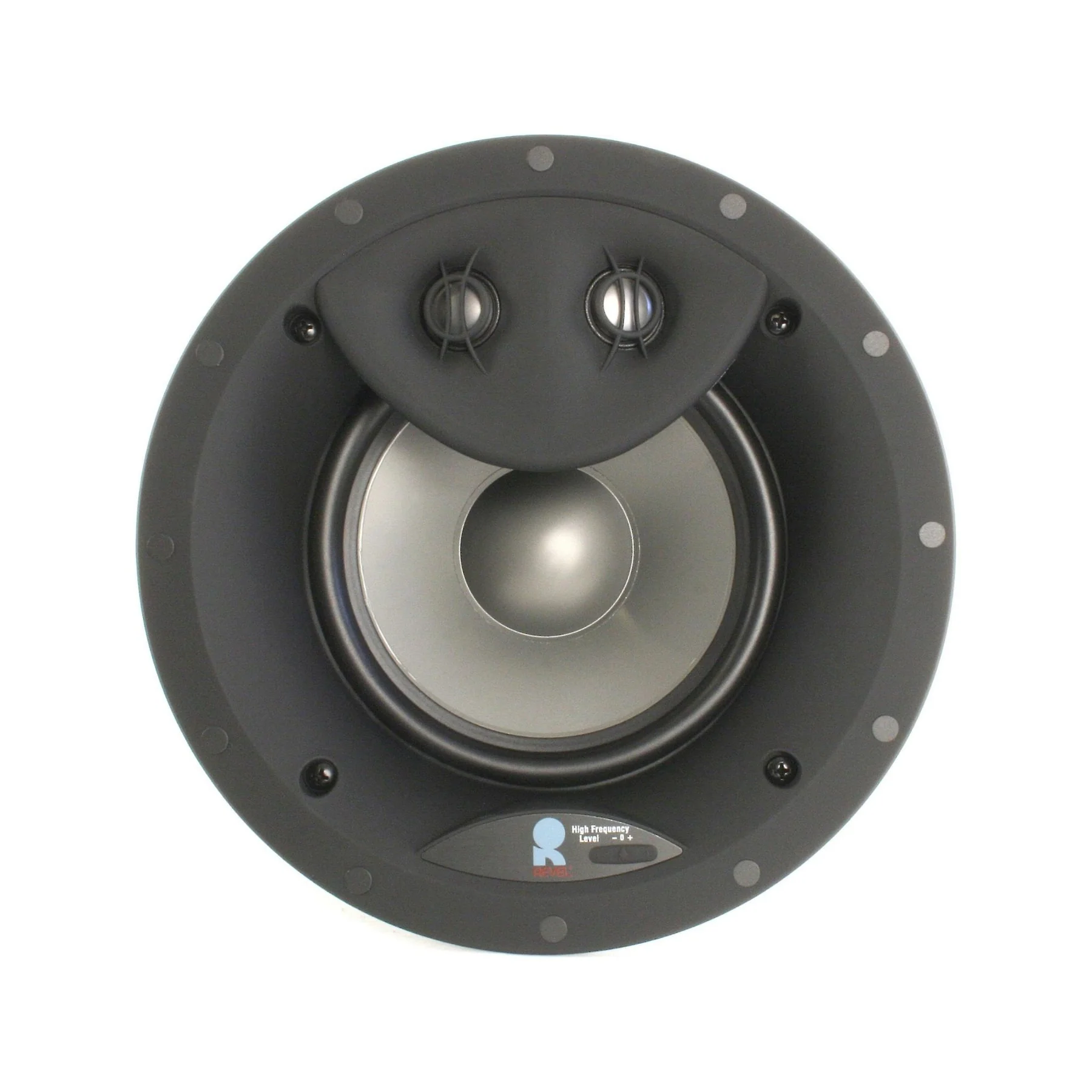

Two 1″ aluminum dome tweeters with waveguides
|
|
Low Frequency Extension
|
High Frequency Extension 3-position HF level control |
|
Low Frequency Driver Components
|
6 ½” Micro-Ceramic Composite (MCC) Cone
Cast-Aluminum Frame Woofer
|
|
Mounting
|
C-2 fastening mechanism
Compatible with wall material thickness range 0.5″ – 2.0″ (1.3 cm – 5.0 cm)
|
|
Recommended Amplifier Power
|
10 – 130 Watts RMS (per channel) |
C563DT
Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.
C563DT HIGHLIGHTS
Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion
1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis

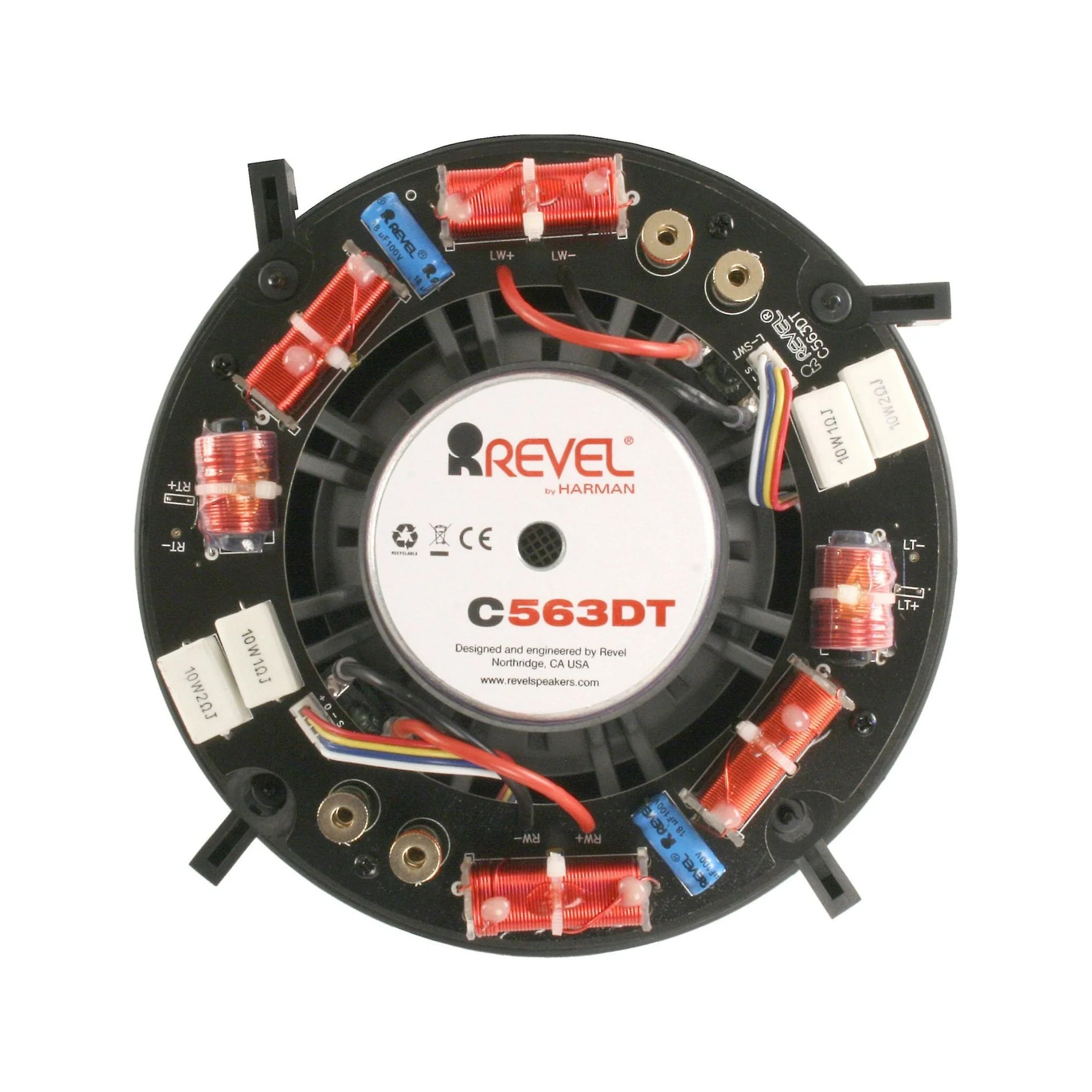

High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction
Boundary compensation switch (C783/C763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near a wall
Three-position tweeter level control (C783/C763/C583/C563) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles
WARRANTY : 1-year manufacturer’s warranty
