PRODUCT SPECIFICATION
| Brand & Model | B&W 702 S3 Floorstanding Speaker |
| Technical features |
Decoupled Carbon Dome tweeter
Solid Body Tweeter-on-Top |
|
Description
|
3-way vented-box system
|
| Drive units |
1x ø25mm (1 in) Decoupled Carbon Dome high-frequency
1x ø150mm (6 in) Continuum cone FST midrange |
|
Frequency range
|
28Hz to 33kHz
|
| Frequency response |
46Hz – 28kHz ±3dB
|
| Harmonic distortion |
2nd and 3rd harmonics (90dB, 1m on axis)
<1% 86Hz – 28kHz |
| Sensitivity | 90dB spl (2.83Vrms, 1m) |
| Nominal Impedance | 8Ω (minimum 3.1Ω) |
| Recommended Amplifier Power | 30W – 300W into 8Ω on unclipped programme |
| Max recommended cable impedance | 0.1Ω |

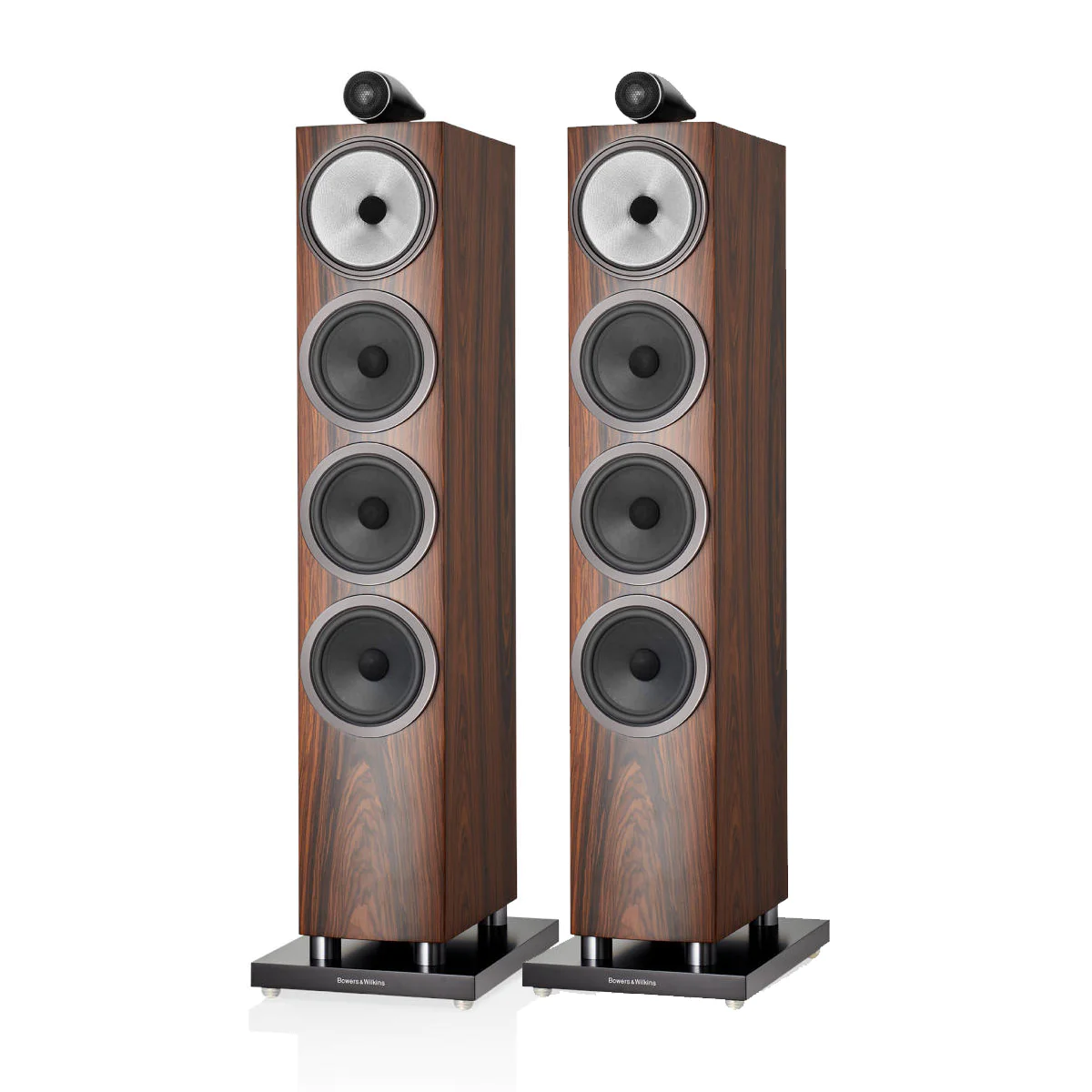

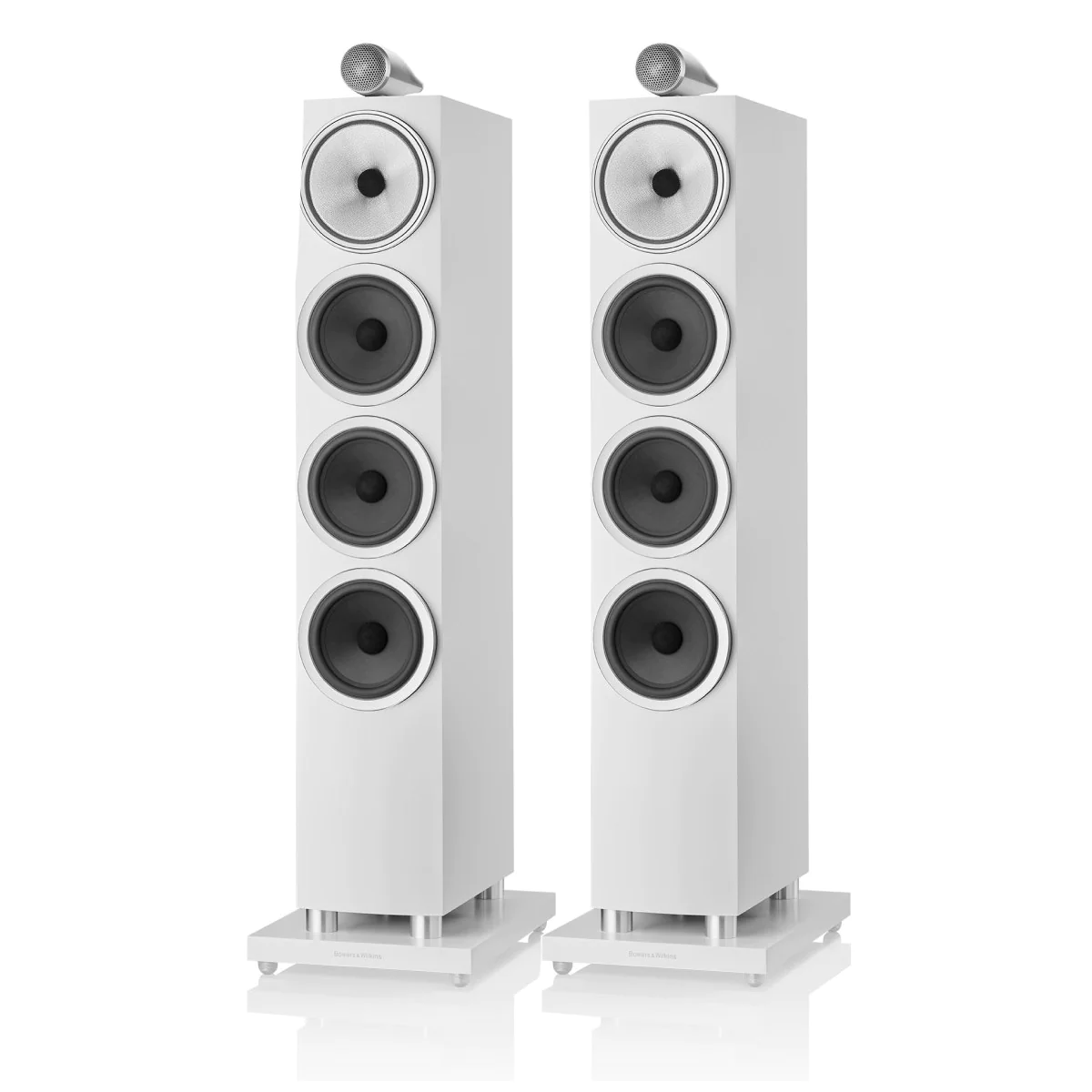

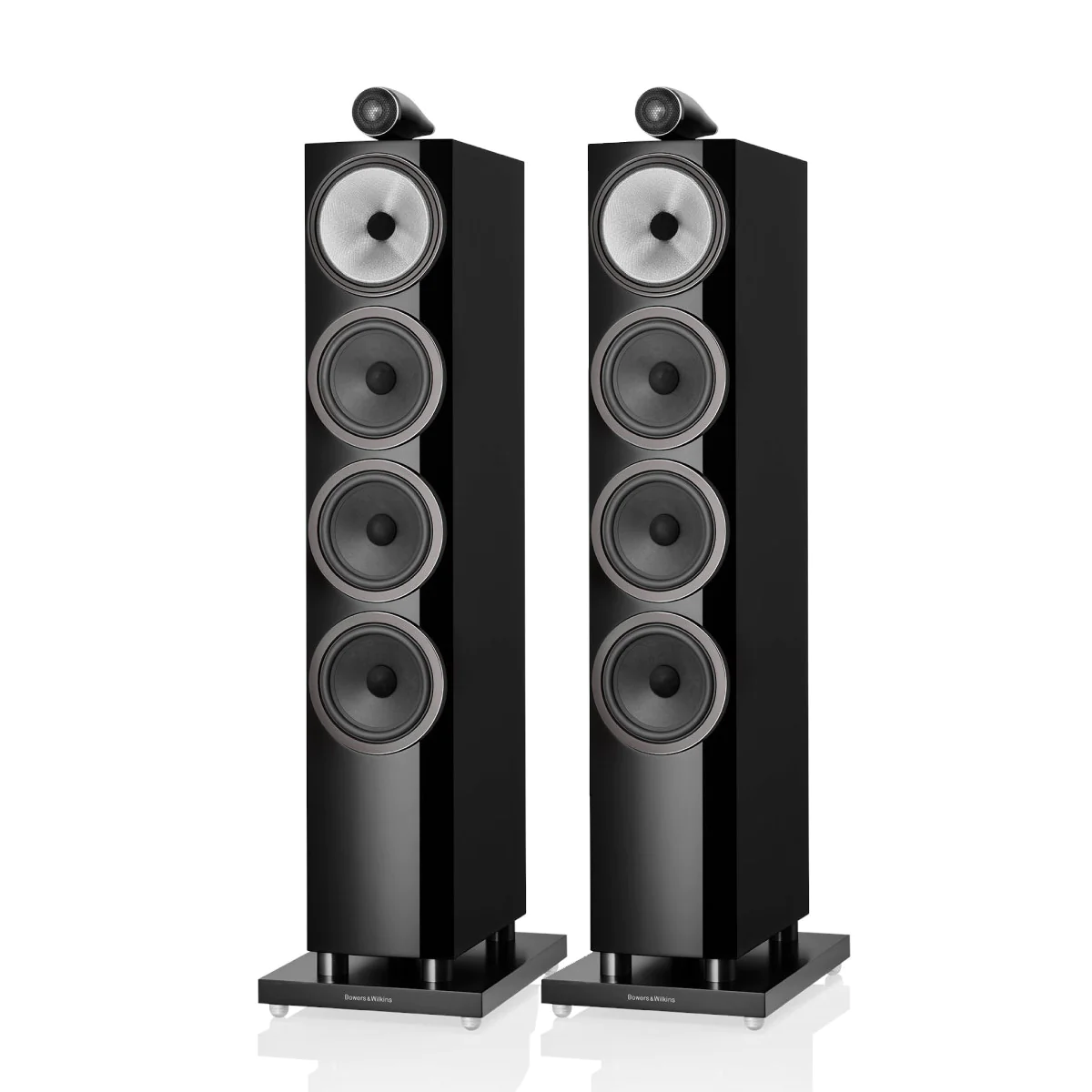

| Cabinet finishes | Gloss Black Satin White Mocha |
| Grille finishes | Black Grey (Satin White only) |
| Dimensions |
Height: 1010 mm (39.8 in) cabinet only
1138 mm (44.8 in) including tweeter and plinth |
| Weight |
33.46kg (73.8 lb)
|
PRODUCT DESCRIPTION
TWEETER-ON-TOP
The 1″ decoupled carbon dome tweeter is featured in a tweeter-on-top design, housed in a frame that’s been milled from a single block of aluminum for better resistance to resonance. With the 702 S3, the tweeter now utilizes a carbon dome, which raised the breakup threshold to 47 kHz, further improving the accuracy of higher frequencies.
CONTINUUM CONE MIDRANGE
The 6″ midrange driver incorporates a composite construction that does not hinder its performance, and four Bowers & Wilkins technologies are employed where the combination ensures clean and neutral vocals and instrument representation without interference from the woofers. The four technologies used are a Continuum cone, FST, biomimetic suspension, and midrange decoupling.
STABLE BASE
The entire unit is made to sit firmly on either wood floors or carpet with a plinth that features 1.2″ metal legs and M10 stainless steel spikes.
ADDITIONAL FEATURES
Supports up to 300W of amplified power
Dual connections support bi-wired setup
Variable thickness woofers for improved rigidity
Flowport
WARRANTY : 1-year manufacturer’s warranty
DECLARATION: All Pre-order/On-Order/Special-Color takes minimum 4-7 weeks to arrange from brand. Please speak with Customer Support Representative incase of any queries of delivery time.
